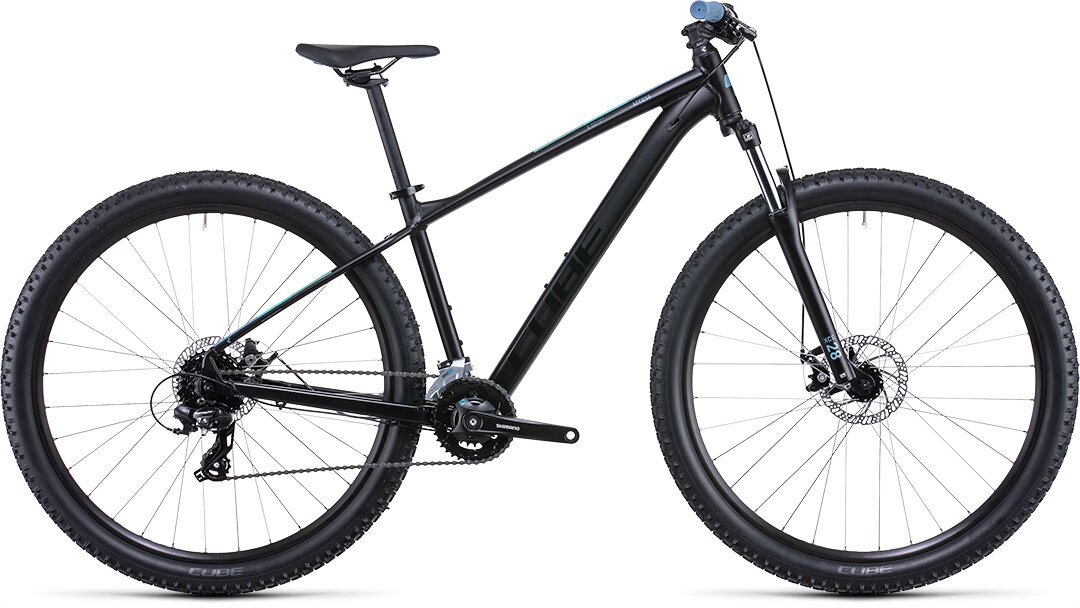

CUBE Bikes Access WS

CUBE Bikes Access WS
This item is currently not available.

Details

Completely revised for 2022, the brand-new Access WS's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates internal cable routing for reliable gear changes and lower maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so every rider can find an Access WS that fits her perfectly.

You might be surprised at the places a bicycle can take you. The new Access WS has a Suntour suspension fork to add comfort to your off-road explorations, no matter how potholed the road or bumpy the path. We fitted powerful disc brakes and wide, grippy tires so that you can always stop safely. Easy-to-use Shimano gears cover a wide range, so you can tackle even the hilliest of routes with confidence. And we designed the handling to be both confidence-inspiring and fun. Where will it take you next?

Wheel size:
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – Large: 29-inch

bike frame with labeled dimensions
Bike Sizes:
14" / 27.5 / X-Small16" / 27.5 / Small18" / 29 / Medium20" / 29 / Large
A. Reach 384.4mm 398mm 409.2mm 426.2mm
B. Stack 595mm 597.6mm 627.3mm 637.4mm
C. Standover 707mm 720mm 759mm 792mm
D. Effective Top Tube 555mm 575mm 595mm 615mm
E. Head Tube Angle 68.5° 68.5° 68.5° 68.5°
F. Head Tube Length 107mm 109.8mm 109.8mm 120.6mm
G. Seat Tube Angle 74° 73.5° 73.5° 73.5°
H. Seat Tube Length 340mm 370mm 420mm 470mm
J. Bottom Bracket Drop 51.5mm 51.5mm 65mm 65mm
M. Wheelbase 1067.5mm 1096.2mm 1136.5mm 1157.5mm
O. Chainstay Length 441mm 441mm 461mm 461mm
Crank Arm Length 170mm 175mm 175mm 175mm

Specs

Frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork SR Suntour XCE, 100mm
Rims CUBE ZX20, 32H, Disc
Tires CUBE IMPAC Smartpac, 2.25
Crankset Shimano FC-M315, 36x22T
Shifters Shimano SL-M315, Rapidfire-Plus
Front Derailleur Shimano FD-M315, Top Swing, 31.8mm Clamp
Rear Derailleur Shimano RD-TX800, 8-Speed
Cassette/Freewheel Shimano CS-HG200, 12-32T
Chain KMC Z8.3
Brakes Tektro MD-280/U310R, Mech. Disc Brake (160/160)
Handlebars CUBE Rise Trail Bar, 680mm
Tape/Grips ACID React
Stem CUBE Performance Stem, 31.8mm
Headset CUBE FPH863, Semi-Integrated
Seatpost CUBE Performance Post, 27.2mm
Saddle Natural Fit Venec Lite WS
Pedals CUBE PP MTB

* Subject to change without notice.
