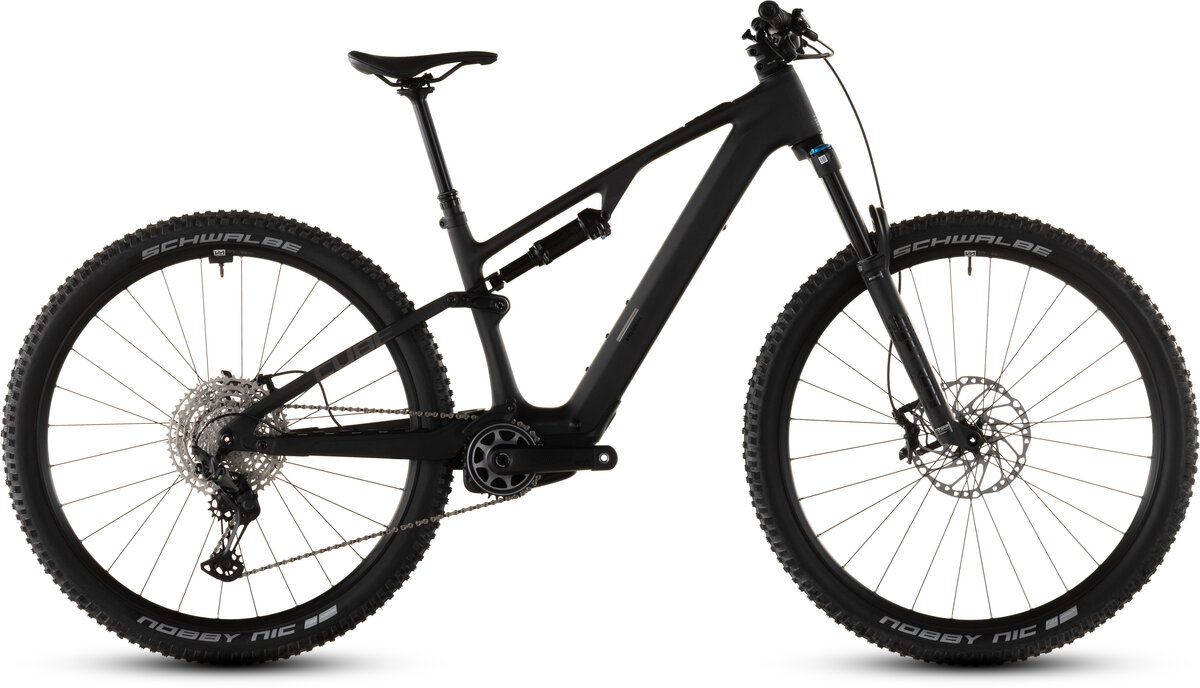

This is how you add extra spice to your riding. Start with a C:62 carbon frame that's designed to combine low weight with trail-ready toughness and the agility you need for long days in the mountains. Add Bosch's lightweight SX drive and a 400Wh battery for up to 60Nm of smooth pedal assistance. Then throw in the matchless reliability of Shimano's XT 1x12 gears with 4-piston hydraulic disc brakes. Garnish with a Fox 34 Float Rhythm fork and matching Float Rhythm RC shock, plus a remote dropper. And finish with a carbon crank, Newmen Performance 30 wheels and 2.4in Schwalbe Nobby Nic tyres. It's the perfect recipe for good times all round, wherever your trail adventures take you.
Specs
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Fork | Fox 34 Float Rhythm GRIP, Tapered, 15x110mm, 140mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Rear Shock | Fox Float Rhythm RC, 210x55mm, Adjustable LSR w/ 2-Pos. Lever |
| Rims/Wheels | Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4 |
| Crankset | ACID MTB Hybrid Carbon, 32T |
| Chain | KMC e12 |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Rear Cogs | Shimano Deore CS-M6100, 10-51T |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Handlebars | Newmen Evolution SL 318.25, 780mm |
| Tape/Grips | ACID Disrupt, Soft Compound |
| Stem | CUBE Stereo Stem w/ Cable Routing |
| Brakes | Shimano XT BR-M8120, Hydr. Disc Brake (203/180) |
| Saddle | ACID Venec EMTB Trail 140 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Battery | Bosch CompactTube 400 |
| Charger | Bosch 2A |
| Controller/Display | Bosch System Control, incl. Mini Remote, |
| Motor | Bosch Drive Unit Performance SX max. 60Nm (BDU31) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| blackline / S | 4054571521941 | 195104 | 11-195104S |
| blackline / M | 4054571521958 | 195104 | 11-195104M |
| blackline / L | 4054571521965 | 195104 | 11-195104L |
| blackline / XL | 4054571521972 | 195104 | 11-195104XL |
