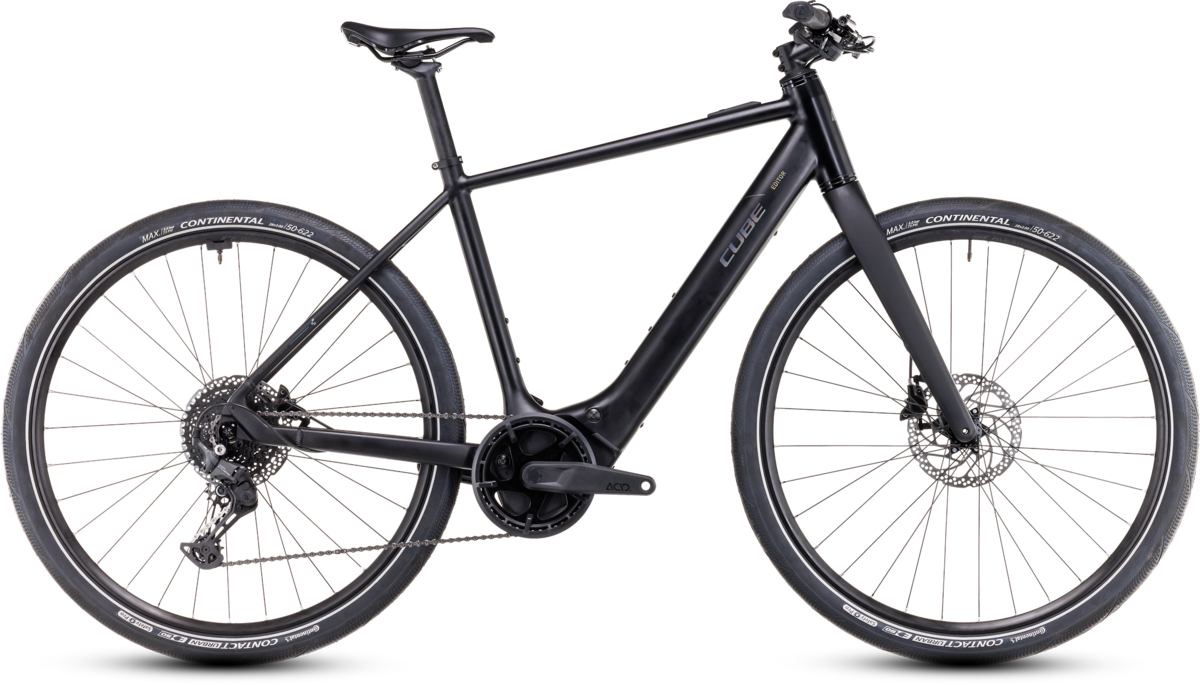

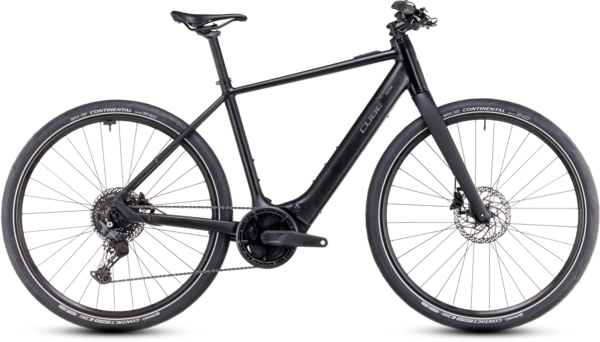

CUBE Bikes Editor Hybrid Pro 400X

CUBE Bikes Editor Hybrid Pro 400X
$4,249.99
Color: Black´n´Spectral
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

There's a new bike in town, and it's called the Editor Hybrid Pro 400X. Featuring Bosch's new lightweight SX drive system, a built-in 400Wh battery, and a controller integrated into the top tube, it's the stealth urban e-bike you never knew you needed. Shimano's easy-to-use 10-speed Cues gears give you the range you need to make light work of any route, whilst powerful Shimano hydraulic disc brakes serve up safe stopping power in all weathers. With wide, grippy Continental Contact Urban 50mm tires and a full carbon fork, you're always in control. Urban smarts, see?

Sizes:
Frame Size 50 cm54 cm58 cm62 cm
Seat tube (cm) 460 510 560 600
Top Tube Horizontal (cm) 570 586 596 607
Seat angle 74.2° 74.2° 74.2° 74.2°
Head tube angle 69° 70° 70° 70°
Chainstays (cm) 477 477 477 477
Head tube (cm) 152 157 177 197
Wheelbase (cm) 1125 1131 1143 1155
BB-Height to Hub (cm) 70 70 70 70
Protrusion height - 80mm (cm) 772 807 845 876
Reach (cm) 400 413 418 424
Stack (cm) 604 613 632 650

Specs

Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout
Fork CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm
Hubs Shimano Tiagra HB-RS470, 12x100mm, Centerlock/Shimano FH-QC300-HM, QR, Centerlock
Crankset ACID MTB Hybrid Pro, 44T
Shifters Shimano Cues SL-U6000, Rapidfire-Plus
Rear Derailleur Shimano Cues RD-U6020-SGS, 10-Speed
Cassette/Freewheel Shimano Cues CS-LG300, 11-39T
Brakes Shimano BR-MT200, Hydr. Disc Brake (180/180)
Handlebars CUBE Rise Trail Bar, 680mm
Tape/Grips ACID Hybrid Tour
Stem CUBE Performance Stem Pro, 31.8mm
Seatpost CUBE Performance Post, 30.9mm
Saddle Natural Fit Venec
Pedals CUBE PP MTB
Motor Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery Bosch CompactTube 400
Controller/Display Bosch System Control, incl. Mini Remote
Charger Bosch 2A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black´n´Spectral / 50cm / 29-inch 04054571482587 89510250 cm 11-89510250
Black´n´Spectral / 54cm / 29-inch 04054571482594 89510254 cm 11-89510254
Black´n´Spectral / 58cm / 29-inch 04054571482600 89510258 cm 11-89510258
Black´n´Spectral / 62cm / 29-inch 04054571482617 89510262 cm 11-89510262
