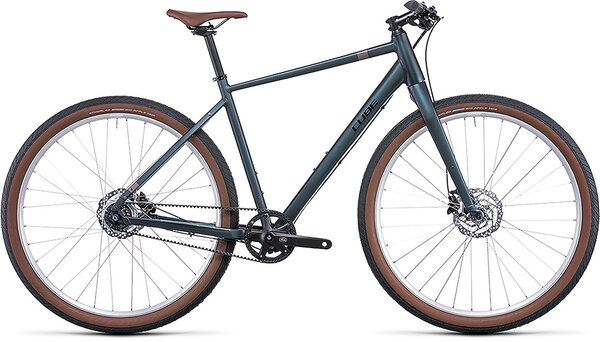

CUBE Bikes Hyde Pro
This item is currently not available.
Details
The Hyde Pro is proof that less can sometimes be more. Its understated looks and clean lines hide a sophisticated, easy-to-live-with bike that's completely at home on city streets. Shimano's rugged, dependable Nexus 8-speed hub gear and a super-durable Gates CDX belt offer clean and practical low-maintenance cycling. Shimano's powerful hydraulic disc brakes ensure you can stop safely, whatever the weather. And fast-rolling Schwalbe tires are grippy and comfortable. Reclaim the streets...

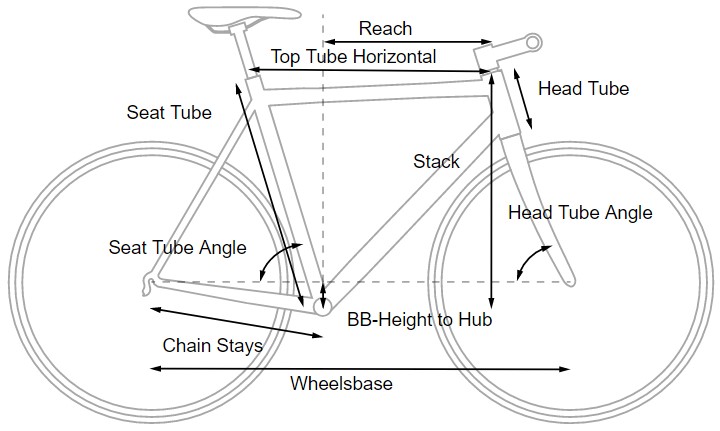

| 46 cm / XS | 50 cm / S | 54 cm / M | 58 cm / L | 62 cm / XL | |
|---|---|---|---|---|---|
| A. Reach | 392.1mm | 394.4mm | 396.6mm | 399.9mm | 402.9mm |
| B. Stack | 572.9mm | 596mm | 619.7mm | 638mm | 661.6mm |
| C. Standover | 811.8mm | 845.6mm | 879.3mm | 910.4mm | 943.2mm |
| D. Effective Top Tube | 551mm | 565mm | 580mm | 595mm | 605mm |
| E. Head Tube Angle | 69° | 70° | 71° | 71° | 71° |
| F. Head Tube Length | 115mm | 135mm | 155mm | 175mm | 200mm |
| G. Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° |
| H. Seat Tube Length | 440mm | 480mm | 520mm | 560mm | 600mm |
| J. Bottom Bracket Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| M. Wheelbase | 1103.6mm | 1103.7mm | 1103.4mm | 1113.1mm | 1124.1mm |
| O. Chainstay Length | 470mm | 470mm | 470mm | 470mm | 470mm |
| Width Tires Maximum | 58mm | 58mm | 58mm | 58mm | 58mm |
Specs
| Frame | Aluminium Superlite, Urban 29, Taper, Double Butted |
|---|---|
| Fork | Aluminium Rigid Fork, 29", Tapered |
| Rims | CUBE UX24, 32H, Disc |
| Hubs | FRONT HUB Joytech D761DSE, Centerlock REAR HUB Shimano Nexus SG-C6001-8D, 8-Speed |
| Tires | Schwalbe Big Apple, Active, 55-622 |
| Crankset | Gates S150 CDN, 46T, 170mm, BB Thun Zumba |
| Shifters | Shimano Alfine SL-S503 |
| Cassette/Freewheel | Gates Rear Sprocket CDN, 22T |
| Chain | Gates CDX, 120T |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| Handlebars | CUBE Flat Race Bar, 660mm |
| Tape/Grips | Natural Fit All Terrain |
| Stem | CUBE Performance Stem Pro, 31.8mm |
| Headset | CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated |
| Seatpost | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Nuance Lite |
| Pedals | ACID PP Trekking |
| Accessories & Extras | Knog Oi Bell |
* Subject to change without notice.
