Details

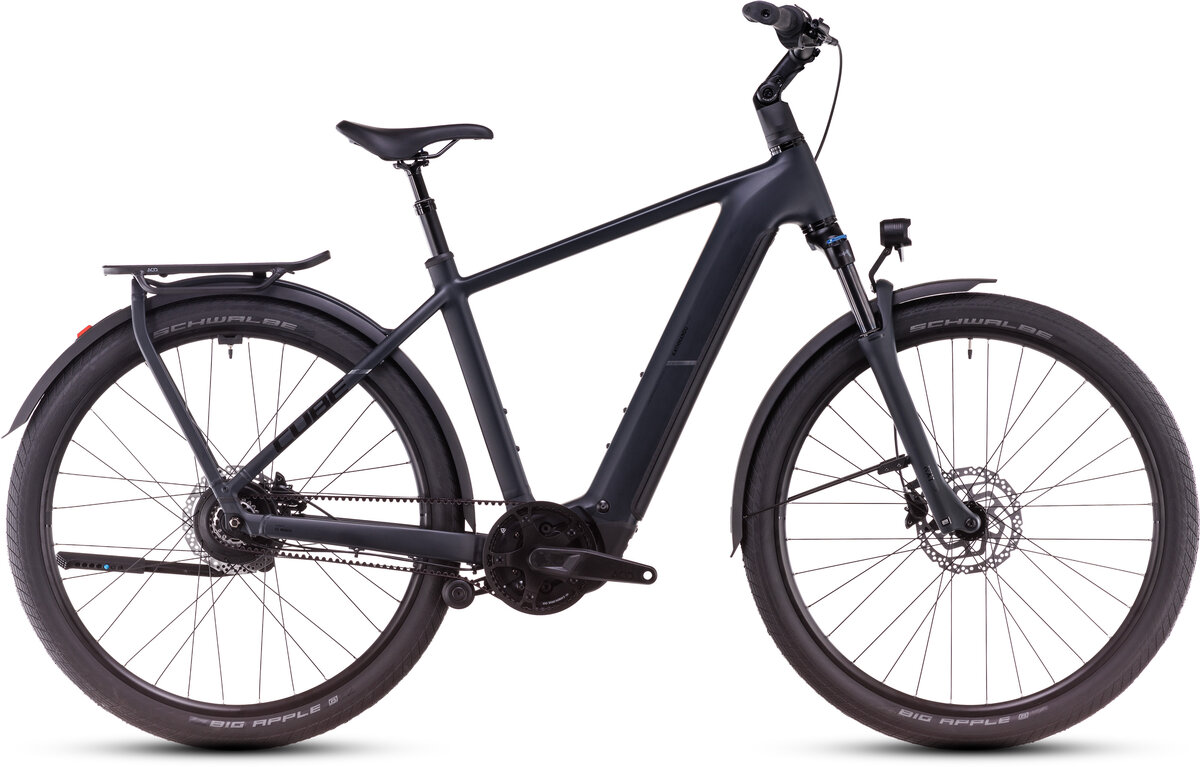

Under its clean, elegant lines the Kathmandu Hybrid Comfort Pro 800 by CUBE has some really clever stuff going on. The Enviolo hub gear is stepless, for starters. That means you just twist until you're comfortable – no such thing as the "wrong" gear. It's also belt-driven, which means no more oily chain. The Bosch CX drive provides up to 85 Nm of pedal assistance, making any route – even hilly ones – a breeze. With its 800 Wh PowerTube battery you've no range worries, either. Strong Shimano hydraulic disc brakes work reliably in all weathers, and there's a Suntour air suspension fork, adjustable stem and suspension seatpost to add comfort. Add the Integrated Carrier 3.0 and a full range of accessories, and you're all set.
Frame Size | 50 cm | 54 cm | 58 cm | 62 cm |
---|---|---|---|---|
Seat tube (cm) | 460 | 510 | 560 | 600 |
Top Tube Horizontal (cm) | 590 | 610 | 630 | 650 |
Seat angle | 73.5° | 73° | 73° | 73° |
Head tube angle | 68° | 68.5° | 68.5° | 68.5° |
Chainstays (cm) | 499 | 499 | 499 | 499 |
Head tube (cm) | 110 | 125 | 140 | 165 |
Wheelbase (cm) | 1173 | 1182 | 1203 | 1226 |
BB-Height to Hub (cm) | 68 | 68 | 68 | 68 |
Protrusion height - 80mm (cm) | 777 | 817 | 850 | 882 |
Reach (cm) | 401 | 410 | 426 | 439 |
Stack (cm) | 638 | 654 | 668 | 692 |
Specs
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube |
---|---|
Fork | SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
Rims | CUBE EX25, 32H, Disc, Tubeless Ready |
Hubs | CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt/Enviolo Trekking, 380%, 6-Bolt, 135mm |
Crankset | ACID MTB Hybrid Pro |
Shifters | Enviolo MC-TWIST |
Cassette/Freewheel | Gates Rear Sprocket E9 CDX, 24T |
Chain | Gates CDX, 128T |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Handlebars | CUBE Comfort Trail Bar, 700mm |
Tape/Grips | ACID Travel Comfort Gripshift |
Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
Seatpost | CUBE Suspension Seatpost HD, 31.6mm |
Saddle | ACID Sequence Pro Plus |
Pedals | ACID PP MTB |
Motor | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
Battery | Bosch PowerTube 800 |
Controller/Display | Bosch Purion 200 w/ Integrated Display |
Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Night´n´Chrome / 50cm / 29-Inch | 04054571486561 | 89513150 cm | 11-89513150 |
Night´n´Chrome / 54cm / 29-Inch | 04054571486578 | 89513154 cm | 11-89513154 |
Night´n´Chrome / 58cm / 29-Inch | 04054571486585 | 89513158 cm | |
Night´n´Chrome / 62cm / 29-Inch | 04054571486592 | 89513162 cm |
