Details

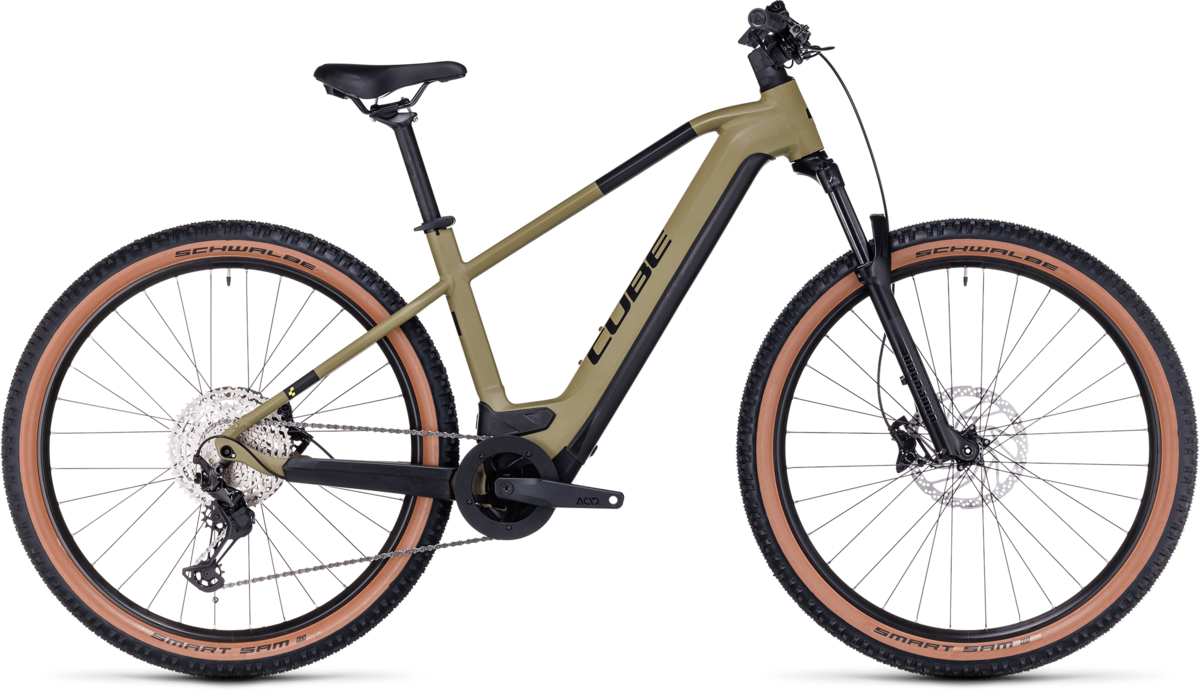

It's all in the detail. So neat is the Reaction Hybrid's frame design, you'll barely notice the high-capacity Bosch battery, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you'll definitely notice the power. Agile Ride Geometry delivers confidence-inspiring handling, as you'd expect. There's an Easy Entry frame option, and a new S frame with 27.5-inch wheels, so everyone can find their ideal Reaction Hybrid. And, with internally routed cables including a stealth dropper post upgrade option, we've reduced the need for maintenance so that you can just enjoy the ride.
With its high-capacity Bosch PowerTube battery, fourth-generation Bosch CX power and the slick shifting and wide range of Shimano's 1x12 XT gears, the Reaction Hybrid Race has what you need to broaden your horizons and take your riding to the next level. Powerful four-piston Shimano hydraulic disc brakes work with 2.6in Schwalbe tires to deliver epic stopping power, while a RockShox Judy Silver air suspension fork delivers 100mm of easy-to-adjust, bump-smoothing travel. With a frame style and size to suit every rider, it's time to get inspired and ride more.
For off-road riding you need a bike that responds quickly, but also feels stable and secure. That's where Agile Ride Geometry comes in. Offering an ideal blend of on-demand steering precision, climbing agility and descending stability, it's perfect for every rider who values their time on the trail. If you're a mountain biker, you'll instantly feel at home...
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
Accessories like a kickstand, fenders and luggage carrier can really extend the versatility of your CUBE bike. We designed mounting points that integrate so neatly with each frame, you'll barely notice they're there – but they also provide a simple, strong and secure attachment for any future upgrades.
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high-capacity batteries. You'll wonder how you ever managed without it.
The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5-inch wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
Wheel size:
Sizes X-Small – Small: 27.5-inch
Sizes Medium – X-Large: 29-inch
| SIZE | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| Seat tube (mm) | 380 | 405 | 450 | 495 | 545 |
| Top Tube Horizontal (mm) | 565 | 628 | 628 | 645 | 672 |
| Seat angle (°) | 75° | 74° | 74° | 74° | 74° |
| Head tube angle (°) | 67° | 67.5° | 67.5° | 68° | 68° |
| Chainstays (mm) | 447 | 460 | 460 | 460 | 460 |
| Head tube (mm) | 120 | 122 | 122 | 132 | 149 |
| Wheelbase (mm) | 1135 | 1196 | 1196 | 1208 | 1236 |
| BB-Height to Hub (mm) | 45 | 65 | 65 | 65 | 65 |
| Protrusion height - 80mm | 756 | 762 | 768 | 781 | 821 |
| Reach (mm) | 400 | 444 | 442 | 456 | 478 |
| Stack (mm) | 614 | 646 | 651 | 662 | 678 |
Specs
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| Fork | RockShox Judy Silver TK Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout (EE: 100mm) |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Hubs |
Front: Shimano HB-MT400-B, 15mm, Boost, Centerlock Rear: Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Tires | Schwalbe Smart Sam, Active, 2.6 |
| Crankset | ACID E-Crank, 38T, 175mm |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Cassette/Freewheel | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake |
| Rotors | 203/203 |
| Handlebars | CUBE Rise Trail Bar Pro, 740mm |
| Tape/Grips | ACID React Pro / EE: ACID Hybrid Perform |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Seatpost | CUBE Performance Post, 30.9mm |
| Saddle | Natural Fit Sequence |
| Pedals | ACID PP MTB |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch PowerTube 625 |
| Controller/Display | Bosch Kiox 300 |
| Charger | Bosch 4A |
* Subject to change without notice.
Part Numbers
| Option | UPC |
|---|---|
| Olive´N´Green / Small / 27.5-Inch | 04054571398918 |
| Olive´N´Green / Medium / 29-Inch | 04054571398925 |
| Olive´N´Green / Large / 29-Inch | 04054571398932 |
| Olive´N´Green / X-Large / 29-Inch | 04054571398949 |
| Olive´N´Green / XX-Large / 29-Inch | 04054571398956 |
| Switchblue´N´Black / Small / 27.5-Inch | 04054571399090 |
| Switchblue´N´Black / Medium / 29-Inch | 04054571399106 |
| Switchblue´N´Black / Large / 29-Inch | 04054571399113 |
| Switchblue´N´Black / X-Large / 29-Inch | 04054571399120 |
| Switchblue´N´Black / XX-Large / 29-Inch | 04054571399137 |
