Details

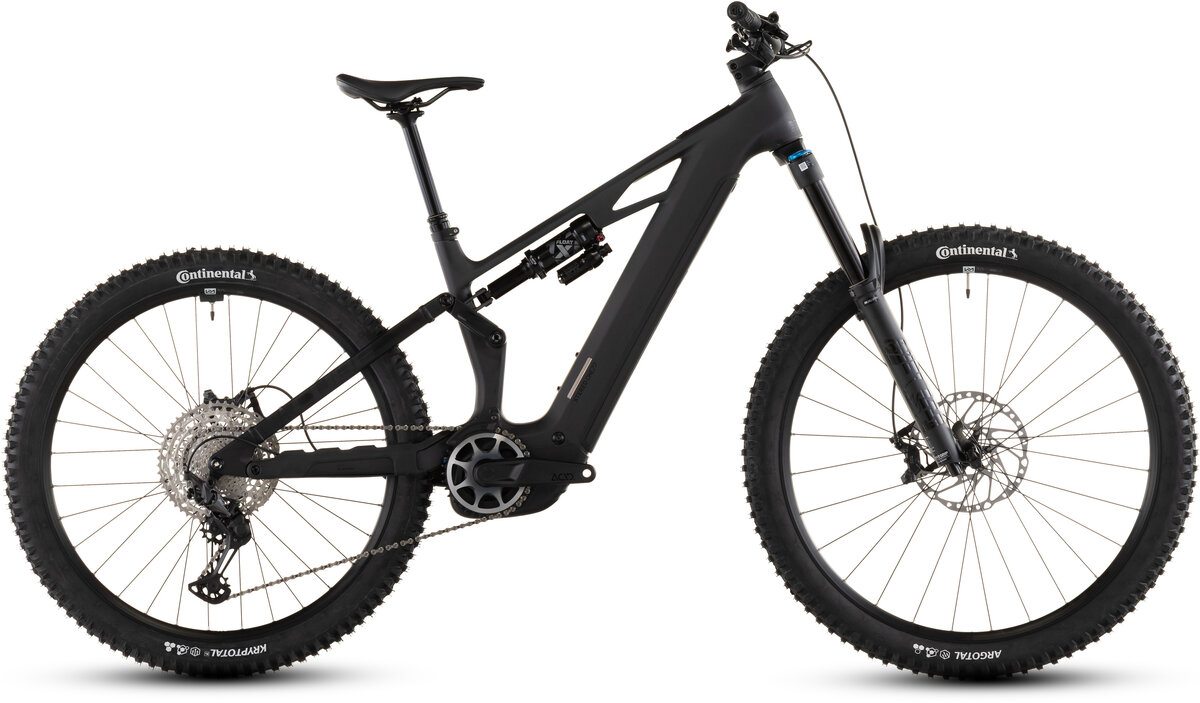

Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Rhythm fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears ??and the top tube-mounted Kiox 400C display shows you exactly what's going on. Meanwhile, the mullet Newmen Performance 30 wheelset ? shod with Continental Argotal and Kryptotal 2.4in tyres ? is held in check by Shimano's new XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it's the perfect formula for big mountain fun.
Specs
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Fork | Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Rear Shock | Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever |
| Rims/Wheels | Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Conti Argotal, Enduro Soft, Tubeless Ready, 2.4, Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
| Crankset | ACID MTB Hybrid Pro, 36T |
| Chain | KMC e12 |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Rear Cogs | Shimano Deore CS-M6100, 10-51T |
| Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
| Handlebars | CUBE Rise Trail Bar 35 |
| Tape/Grips | ACID Disrupt, Soft Compound |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Brakes | Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
| Pedals | ACID PP MTB |
| Saddle | ACID Venec EMTB Trail 140 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Weight | 24,7 kg |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Controller/Display | Bosch Mini Remote, Bosch Kiox 400C |
| Motor | Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| blackline / S | 4054571521866 | 195102 | 11-195102S |
| blackline / M | 4054571521873 | 195102 | 11-195102M |
| blackline / L | 4054571521880 | 195102 | 11-195102L |
| blackline / XL | 4054571521897 | 195102 | 11-195102XL |
