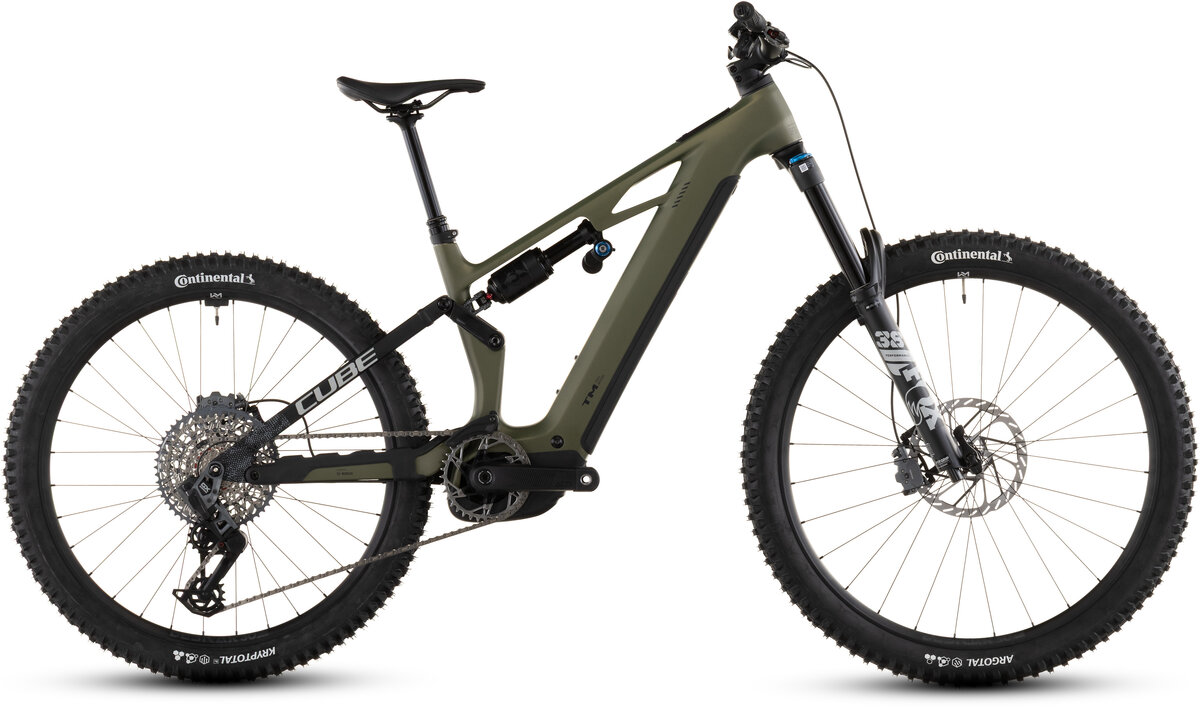

CUBE Bikes STEREO HYBRID ONE77 HPC TM

CUBE Bikes STEREO HYBRID ONE77 HPC TM
$9,999.99
Color: reed green'n'matrix
Size: Select size
Please select options Unavailable

Details

In keeping with CUBE Trail Motion tradition, the Stereo Hybrid ONE77 HPC TM is something rather special. For starters, we fed the power of the Bosch CX drive and 800Wh PowerTube battery through Sram's GX Eagle Transmission 1x12 gears with an ACID carbon crank, for effortless ratio selection and incredible electronic precision ??and the Kiox 400C display shows you exactly what's going on. Next, we chose a Fox Float 38 Performance fork and paired it with a Float X2 Performance shock. Together, they provide 170mm of travel ? with loads of adjustment ? to help keep the rubber side down. Speaking of which, the mullet Newmen Beskar 30 wheelset is shod with Continental's grippy Argotal and Kryptotal 2.4in tyres. Which is a good thing, because all that traction helps the powerful Sram Maven Bronze hydraulic disc brakes do their job. Combined with a remote dropper seatpost, it's everything you need to pick a fight with gravity and come out on top.

Specs

Frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Fork Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Rear Shock Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
Rims/Wheels Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires Conti Argotal, Enduro Soft, Tubeless Ready, 2.4, Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Crankset ACID MTB Hybrid Carbon, 36T
Chain Sram GX Eagle™ Transmission
Rear Derailleur Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Rear Cogs Sram XS-1275, 10-52T
Shifters Sram AXS™ Pod Controller
Handlebars CUBE Rise Trail Bar 35
Tape/Grips ACID Disrupt, Soft Compound
Stem CUBE Performance Stem E-MTB 35, FPI-Link
Brakes Sram Maven Bronze, Hydr. Disc Brake (200/200)
Pedals ACID PP MTB
Saddle ACID Venec EMTB Trail 140
Seat Post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Weight 24,6 kg
Battery Bosch PowerTube 800
Charger Bosch 4A
Controller/Display Bosch Mini Remote, Bosch Kiox 400C
Motor Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
reed green'n'matrix / S 4054571521903 195103 11-195103S
reed green'n'matrix / M 4054571521910 195103 11-195103M
reed green'n'matrix / L 4054571521927 195103 11-195103L
reed green'n'matrix / XL 4054571521934 195103 11-195103XL
