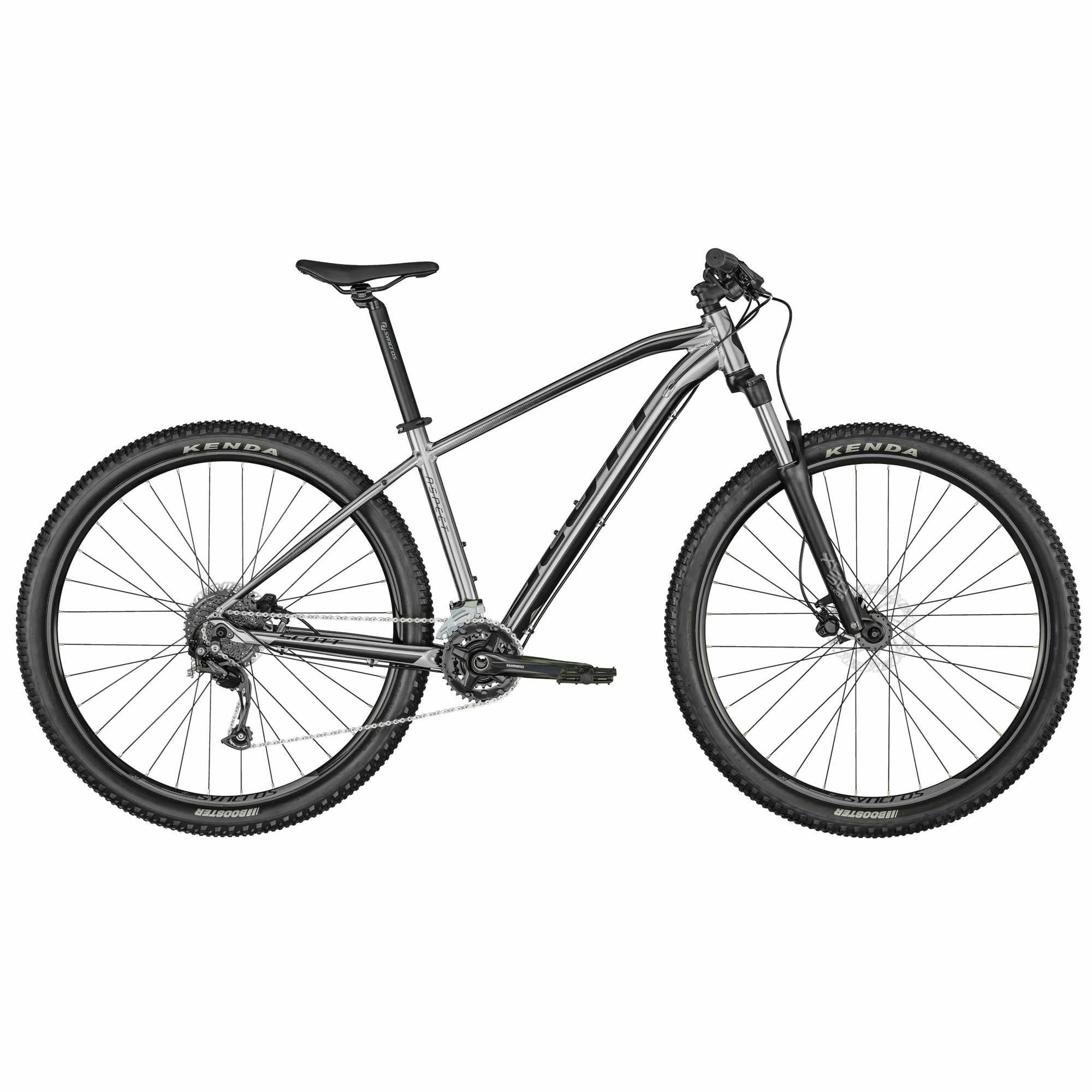

Scott Aspect 950
$849.99
Details
The SCOTT Aspect 950 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.
Please note that bike specifications are subject to change without prior notice
- Aspect 700/900 Alloy Frame
- Suntour XCT30-HLO 100mm Fork
- Shimano Altus 18 Speed
- Tektro Hyd. Disc Brakes
- Kenda Booster

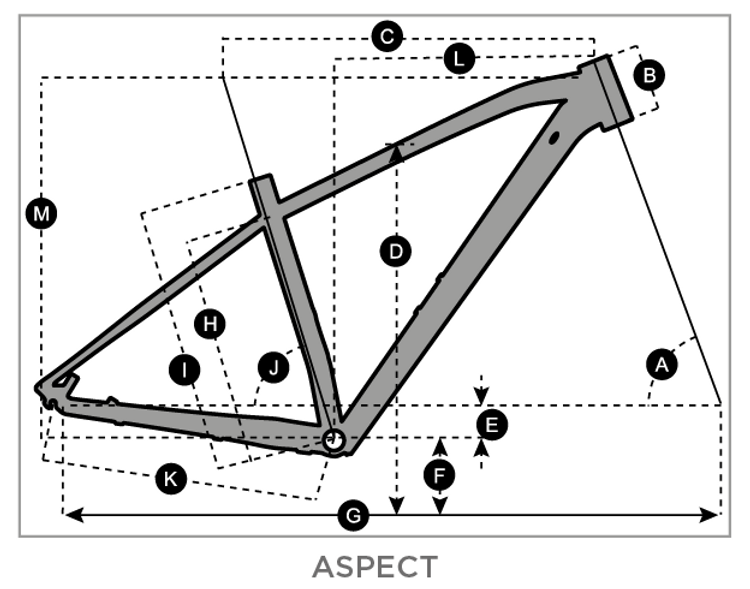

| X-Small | Small | Medium | Large | X-Large | XX-Large | ||
|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 135.0 MM | 150.0 MM |
| C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | 635.0 MM | 655.0 MM |
| D | STANDOVER HEIGHT | 743.0 MM | 771.0 MM | 783.0 MM | 821.0 MM | 857.0 MM | 891.0 MM |
| E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM |
| F | BB HEIGHT | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM |
| G | WHEEL BASE | 1,102.0 MM | 1,090.0 MM | 1,102.0 MM | 1,123.0 MM | 1,144.0 MM | 1,164.0 MM |
| H | BB CENTER TO TOPTUBE CENTER | 309.0 MM | 349.0 MM | 394.0 MM | 434.0 MM | 484.0 MM | 534.0 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM |
| J | SEAT ANGLE | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| K | CHAINSTAY | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM |
| L | REACH | 388.0 MM | 406.0 MM | 419.0 MM | 431.0 MM | 447.0 MM | 463.0 MM |
| M | STACK | 580.0 MM | 603.0 MM | 612.0 MM | 622.0 MM | 636.0 MM | 649.0 MM |
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 90.0 MM | 100.0 MM |
Specs
| Pedals | Feimin FP-873-ZU |
|---|---|
| Fork | Suntour XCT30-HLO, Hyd. Lockout / 100mm travel |
| Hubs | Formula DC-19 FQR Disc|Formula DC-25 8s RQR Disc |
| Rims | Syncros X-20 Disc, 32H / black |
| Stem | Syncros 3.0 / 7° / Black |
| Chain | KMC X9 |
| Frame | Aspect 900-700 series / Alloy 6061 Custom Tubing, BSA73 / Internal Cable Routing / replaceable hanger |
| Tires | Kenda Booster, 2.4" / 30TPI |
| Brakes | Tektro HDM275 Hydr. Disc Brakes |
| Rotors | Tektro / 6 bolt / F&R 160mm |
| Saddle | Syncros 3.0 |
| Spokes | 14 G / stainless / black |
| Headset | Syncros OE Press Fit / 1 1/8", OD 50mm / ID 44mm |
| Crankset | PROWHEEL RAID-501-TT, 2-piece Design / 36X22 |
| Seatpost | Syncros 3.0, 31.6mm / 350mm / Black |
| Shifters | Shimano SL-M2010, R-fire plus / 2 way release, w/gear indicator |
| Handlebars | Syncros 3.0 / 720mm, black / 31.8mm / 12mm rise / 9° BS, Syncros Pro Grip |
| Bottom Bracket | Shimano BB-MT500, Hollowtech II / threaded |
| Rear Derailleur | Shimano Altus RD-M2000, 18 Speed |
| Front Derailleur | Shimano FD-M2020-TS / 31.8mm |
| Cassette/Freewheel | Shimano CS-HG200-9 / 11-36T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Slate Grey | 192820733890 | 290208014 | 46-91-21-08-5012 |
| Sunflower Yellow | 192820733968 | 290209014 | |
| Sunflower Yellow / X-Small | 192820733913 | 290209004 | |
| Sunflower Yellow / Small | 192820733920 | 290209006 | |
| Slate Grey / Medium | 192820733869 | 290208008 | 46-91-21-08-5004 |
| Sunflower Yellow / Medium | 192820733937 | 290209008 | |
| Sunflower Yellow / Large | 192820733944 | 290209010 | |
| Slate Grey / Large | 192820733876 | 290208010 | 46-91-21-08-5008 |
| Slate Grey / X-Large | 192820733883 | 290208012 | 46-91-21-08-5010 |
| Sunflower Yellow / X-Large | 192820733951 | 290209012 |
