Scott Scale 20
$549.99
Details
The SCOTT Scale 20 is our truly functional bike for kids who like a race inspired style.
Please note that bike specifications are subject to change without prior notice
- Scale 20 Junior Alu-Rahmen
- SR Suntour XCT-JR 20 Gabel
- Shimano Tourney 7 Gänge
- V-Bremsen
- Kenda Booster

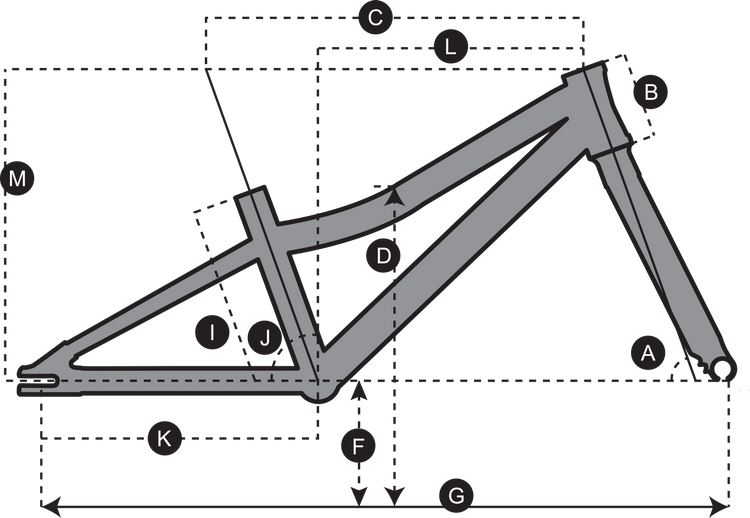

| 20" | ||
|---|---|---|
| A | HEAD TUBE ANGLE | 69.0 ° |
| B | HEAD TUBE LENGTH | 100.0 MM |
| C | TOP TUBE HORIZONTAL | 450.0 MM |
| D | STANDOVER HEIGHT | 509.9 MM |
| E | BB OFFSET | |
| F | BB HEIGHT | |
| G | WHEEL BASE | 892.1 MM |
| H | BB CENTER TO TOPTUBE CENTER | |
| I | BB CENTER TO TOP OF SEATTUBE | 280.0 MM |
| J | SEAT ANGLE | 70.4 ° |
| K | CHAINSTAY | 370.0 MM |
| L | REACH | |
| M | STACK | |
| N | STEM LENGTH | 50.0 MM |
| 0 | TRAIL |
Specs
| Pedals | Kids Pedals / w/Reflector |
|---|---|
| Fork | SR Suntour XCT-JR 20, 40mm travel, Softer spring setup |
| Hubs | KT-122F / Nutted|KT-122R / Nutted |
| Rims | Shining V-6NS |
| Stem | Alloy 50mm / +10° / 25.4mm clamp |
| Chain | KMC Z7 |
| Frame | Scale 20 Junior, Alloy 6061 / Semi int. HT, SCOTT dropout / V-Brake |
| Tires | Kenda K1227 Booster / 20x2.2" / 30TPI |
| Brakes | Tektro V-Brakes, Kids' specific |
| Saddle | Syncros Future Pro |
| Spokes | 15G / UCP / black |
| Headset | Feimin FP-H807, 1 1/8" Semi Int. |
| Crankset | Prowheel / Alloy Crank 127mm, 36T / w/CG PVG double cover |
| Seatpost | Alloy / 26.8mm / 250mm |
| Shifters | Shimano SL-RV300-7, Revo Shifter |
| Handlebars | Kids riser bar alloy D:19mm, 540mm / 20mm Rise, Syncros Grips Kids100/80 D19 |
| Brake Levers | Tektro Junior JL-510 TS / RS |
| Bottom Bracket | Feimin / BB68 / cartridge / square taper |
| Rear Derailleur | Shimano RD-TY300, 7 Speed |
| Accessories & Extras | Kickstand Syncros Stem Protector |
| Cassette/Freewheel | SunRace MFM300, 7 Speed / 13-34T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Silver / 20-inch | 192820757995 | 290766222 | 46-91-45-02-0300 |
