Scott Solace Gravel eRIDE 20

Scott Solace Gravel eRIDE 20
$10,499.99
Color:
Beige
Wheel Size:
700c
Please select options
Order now and pick up in-store for free

Details

Expand your horizons with the new Solace Gravel. From all day Alpine epics to Saturday morning time-crunched escapes the Solace Gravel is hugely versatile. Quiet, efficient and with an almost zero drag crank mounted motor, the Solace features a 360Wh internal battery with optional 160Wh externally mounted range extender (sold seperately) to push the horizon that little bit further. 3 levels of assistance allow for battery optimization or full boost. Electronic shifting from SRAM and our internal cable routing results in a clean cockpit, perfect for mounting handlebar and frame bags for when adventure truly calls.

Please note that bike specifications are subject to change without prior notice.

- Solace eRIDE Disc HMX Carbon Frame
- Solace eRIDE HMX Fork
- SRAM Rival XPLR eTap AXS Disc 12 Speed
- TQ Mid Motor drive 50Nm max Torque, 300W
- Syncros Capital 1.0 40e Disc Wheels
- Schwalbe G-One Overland EVO TL-Tires
- Syncros Carbon/Alloy parts

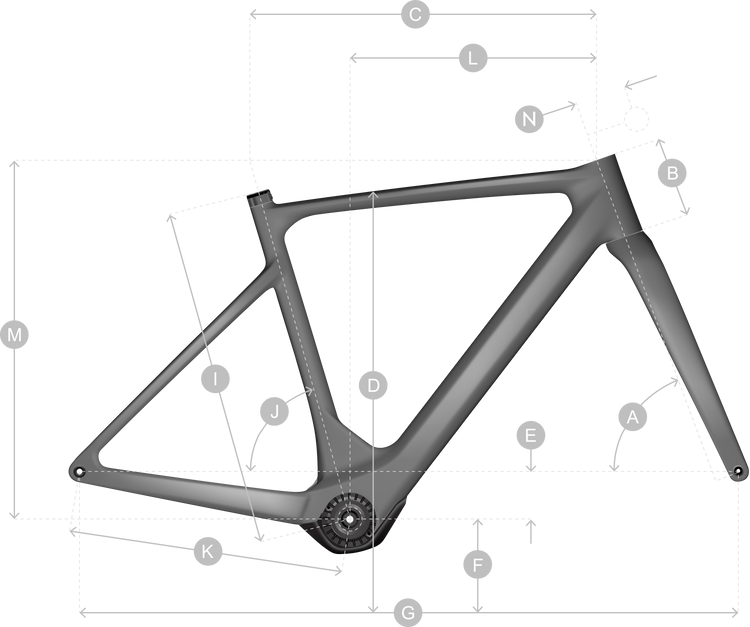

Geometry
Geometry Chart:
XS/49S/52M/54L/56XL/58
A HEAD TUBE ANGLE 69.5 ° 70.0 ° 71.0 ° 71.0 ° 71.0 °
B HEAD TUBE LENGTH 85.0 MM 110.0 MM 128.0 MM 154.0 MM 175.0 MM
C TOP TUBE HORIZONTAL 518.0 MM 534.2 MM 554.5 MM 578.4 MM 592.5 MM
D STANDOVER HEIGHT 759.0 MM 785.0 MM 803.0 MM 824.0 MM 841.0 MM
E BB OFFSET 76.0 MM 76.0 MM 76.0 MM 76.0 MM 76.0 MM
F BB HEIGHT 283.0 MM 283.0 MM 283.0 MM 283.0 MM 283.0 MM
G WHEEL BASE 1,021.5 MM 1,030.1 MM 1,036.8 MM 1,056.2 MM 1,071.1 MM
H BB CENTER TO TOPTUBE CENTER
I BB CENTER TO TOP OF SEATTUBE 477.0 MM 507.0 MM 527.0 MM 547.0 MM 567.0 MM
J SEAT ANGLE 74.5 ° 74.0 ° 73.5 ° 73.0 ° 73.0 °
K CHAINSTAY 435.0 MM 435.0 MM 435.0 MM 435.0 MM 435.0 MM
L REACH 374.0 MM 378.0 MM 387.0 MM 398.0 MM 406.0 MM
M STACK 519.3 MM 544.7 MM 565.6 MM 590.2 MM 610.0 MM
N STEM LENGTH 90.0 MM 100.0 MM 110.0 MM 110.0 MM 120.0 MM
0 TRAIL 80.8 MM 77.5 MM 70.7 MM 70.7 MM 70.7 MM

Specs

Motor TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 28mph
Battery TQ Internal 360Wh
Charger TQ 100-240V-4A
Controller/Display TQ HPR, Bluetooth ANT+/ Dedicated Smartphone app
Fork Solace Gravel eRIDE HMX Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
Hubs Schwalbe G-One Overland EVO, 700x50C
Stem Syncros RR2.0 1 1/4" / four Bolt 31.8mm
Chain SRAM RIVAL
Frame Solace Gravel eRIDE Disc HMX, Endurance geometry / Replaceable Derailleur Hanger, Fully Internal cable routing, Range Extender Ready
Brakes SRAM RIVAL eTap AXS HRD Shift-Brake System, Flatmount
Rotors SRAM Paceline rotor 160/F and 160/R
Saddle Syncros Tofino Regular 2.0 Cutout
Headset Syncros Capital 1.0 40e Disc, 24 Front 12x100mmTA /24 Rear 12x142mmTA
Crankset FSA eBike Alloy
Seatpost Syncros Duncan SL Aero
Shifters SRAM RIVAL eTap AXS HRD Shift-Brake System
Chainrings SRAM X-SYNC, 42T 110 BCD
Handlebars Syncros Creston 1.0 X, Carbon 31.8mm
Rear Derailleur SRAM RIVAL XPLR eTap AXS, 12 Speed Electronic Shift System
Cassette/Freewheel SRAM XPLR XG1251, 10-44

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Beige / 49cm / 700c 192820751993 290622049
Beige / 52cm / 700c 192820752006 290622052 46-91-24-12-2003
Beige / 54cm / 700c 192820752013 290622054 46-91-24-12-2004
Beige / 56cm / 700c 192820752020 290622056 46-91-24-12-2008
Beige / 58cm / 700c 192820752037 290622058
