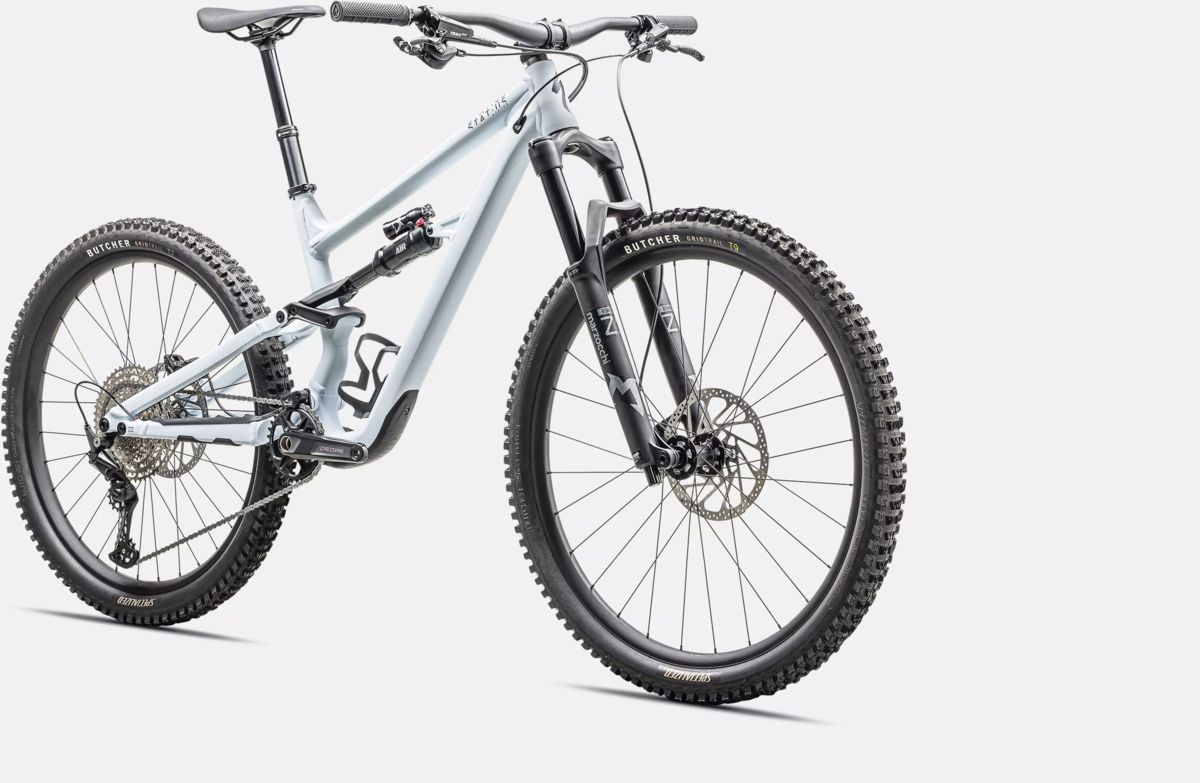

Specialized STATUS 2 140

Specialized STATUS 2 140
  • Color: Morning Mist/Dark Navy
$4,500.00
Color: Morning Mist/Dark Navy
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

Frame SizeS1S2S3S4S5
Crank Length (mm/in) 165 / 6.5" 170 / 6.7" 170 / 6.7" 170 / 6.7" 170 / 6.7"
Handlebar Width (mm/in) 780 / 30.7" 800 / 31.5" 800 / 31.5" 800 / 31.5" 800 / 31.5"
Stem Length (mm/in) 40 / 1.6" 40 / 1.6" 40 / 1.6" 40 / 1.6" 40 / 1.6"
Saddle Width (mm/in) 143 / 5.6" 143 / 5.6" 143 / 5.6" 143 / 5.6" 143 / 5.6"
Seatpost Length (mm/in) 125 / 4.9" 150 / 5.9" 170 / 6.7" 170 / 6.7" 190 / 7.5"
Stack (low/high) (mm/in) 605 / 601 23.8"/23.7" 609 / 605 24.0"/23.8" 618 / 614 24.3"/24.2" 627 / 623 24.7"/24.5" 636 / 632 25.0"/24.9"
Reach (low/high) (mm/in) 415 / 421 16.3"/16.6" 440 / 446 17.3"/17.6" 465 / 471 18.3"/18.5" 490 / 496 19.3"/19.5" 515 / 521 20.3"/20.5"
Headtube Length (mm/in) 100 / 3.9" 105 / 4.1" 115 / 4.5" 125 / 4.9" 135 / 5.3"
Headtube Angle (°) (low/high) 64 / 64.5 64 / 64.5 64 / 64.5 64 / 64.5 64 / 64.5
BB Height (low/high) (mm/in) 338 / 346 13.3"/13.6" 338 / 346 13.3"/13.6" 338 / 346 13.3"/13.6" 338 / 346 13.3"/13.6" 338 / 346 13.3"/13.6"
BB Drop (low/high) (mm/in)

38 / 30

1.5"/1.2"

38 / 30

1.5"/1.2"

38 / 30

1.5"/1.2"

38 / 30

1.5"/1.2"

38 / 30

1.5"/1.2"

Trail (low/high) (mm/in) 134 / 130 5.3"/5.1" 134 / 130 5.3"/5.1" 134 / 130 5.3"/5.1" 134 / 130 5.3"/5.1" 134 / 130 5.3"/5.1"
Fork Length (full) (mm/in) 551 / 21.7" 551 / 21.7" 551 / 21.7" 551 / 21.7" 551 / 21.7"
Fork Rake/Offset (mm/in) 44 / 1.7" 44 / 1.7" 44 / 1.7" 44 / 1.7" 44 / 1.7"
Front Center (mm/in) 741 / 29.2" 768 / 30.2" 798 / 31.4" 827 / 32.6" 857 / 33.7"
Chainstay Length (mm/in) (low/high) 427 / 423 16.8"/16.7" 427 / 423 16.8"/16.7" 427 / 423 16.8"/16.7" 432 / 428 17.0"/16.9" 432 / 428 17.0"/16.9"
Wheelbase (mm/in) 1168 / 46.0" 1195 / 47.0" 1225 / 48.2" 1259 / 49.6" 1288 / 50.7"
Top Tube Length (mm/in) (horizontal) 549 / 21.6" 590 / 23.2" 630 / 24.8" 671 / 26.4" 711 / 28.0"
Bike Standover Height (mm/in) 735 / 28.9" 735 / 28.9" 739 / 29.1" 743 / 29.3" 747 / 29.4"
Seat Tube Length (mm/in) 390 / 15.4" 400 / 15.7" 420 / 16.5" 440 / 17.3" 465 / 18.3"
Seat Tube Angle (°) (low/high) 77 / 77.6 77 / 77.6 77 / 77.6 77 / 77.6 77 / 77.6
SizeInchCMTraditional
S0 4'9" - 5'2" 144 - 157 XXS
S1 4'11" - 5'3" 150 - 160 XS
S2 5'2" - 5'8" 157 - 173 S
S3 5'5" - 5'11" 165 - 180 M
S4 5'8" - 6'2" 173 - 188 L
S5 5'10"+ 178+ XL

Specs

Frame M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Fork Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
Rear Shock Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
Tires Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Rear: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Brakes TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rims Specialized, hookless alloy, 30mm inner width, tubeless ready
Crankset Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Cassette/Freewheel Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Rear Derailleur Shimano Deore, M6100, 12pd, Shadow Plus
Brake Levers Shimano Deore, M6100, I-Spec EV, 12 speed
Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
Chain Shimano Deore M6100, 12spd
Tape/Grips Deity Knuckleduster
Stem Alloy Trail Stem, 35mm bar bore
Seatpost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Saddle Bridge Comp, Hollow Cr-mo rails, 143mm
Hubs Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry

* Subject to change without notice.

Part Numbers

Option UPC MPN
Morning Mist/Dark Navy / S3 / 29-inch front / 27.5-inch rear 888818887644 93723-7103
Morning Mist/Dark Navy / S4 / 29-inch front / 27.5-inch rear 888818887514 93723-7104
